| Jawa-CZ' profilation of this bike |
| JAWA 650 Dakar is capable of traveling long distances over smooth and rough roads with great comfort. |
|
General information |
|
Motorcycle name
|

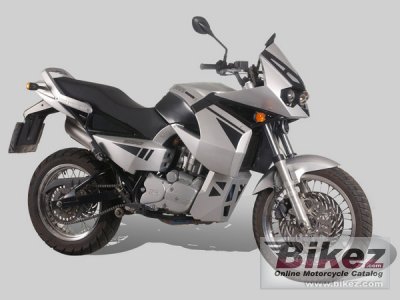

Jawa-CZ 650 Dakar |
|
Model year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
651.9 ccm (39.78 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
47.5 HP (34.6 kW)) @ 6500 RPM |
|
Torque
|
57.0 Nm (5.8 kgf-m or 42.0 ft.lbs) @ 5000 RPM |
|
Top speed
|
165.0 km/h (102.5 mph) |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
100.0 x 83.0 mm (3.9 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Bing |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Paioli telescopic forks |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
Central unit |
|
Rear wheel travel
|
170 mm (6.7 inches) |
|
Front tire
|
110/90-19 |
|
Rear tire
|
140/80-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
195.0 kg (429.9 pounds) |
|
Power/weight ratio
|
0.2434 HP/kg |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1518 mm (59.8 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Color options
|
Silver |
|
Starter
|
Electric |
|
Comments
|
Rotax engine |
