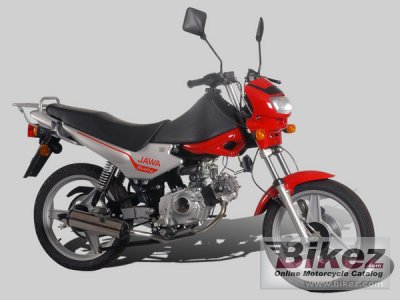

Jawa-CZ 50 Robby 20092009 Jawa-CZ 50 Robby specifications, pictures, reviews and rating |
| General moped information | |
|---|---|
| Model name | Jawa-CZ 50 Robby |
| Year | 2009 |
| Category | Sport |
| Rating | 2.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.5 ccm (3.02 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 3.0 HP (2.2 kW)) @ 9250 RPM |
| Torque | 3.2 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 5500 RPM |
| Top speed | 48.0 km/h (29.8 mph) |
| Compression | 8.5:1 |
| Bore x stroke | 39.0 x 41.4 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic forks |
| Front wheel travel | 80 mm (3.1 inches) |
| Rear suspension | Hydraulic telescopic |
| Rear wheel travel | 70 mm (2.8 inches) |
| Front tire | 2.50-16 |
| Rear tire | 3.00-16 |
| Front brakes | Single disc |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 124 mm (4.9 inches) |
| Physical measures and capacities | |
| Dry weight | 87.0 kg (191.8 pounds) |
| Power/weight ratio | 0.0339 HP/kg |
| Seat height | 730 mm (28.7 inches) If adjustable, lowest setting. |
| Overall width | 730 mm (28.7 inches) |
| Wheelbase | 1200 mm (47.2 inches) |
| Fuel capacity | 6.50 litres (1.72 US gallons) |
| Reserve fuel capacity | 1.20 litres (0.32 US gallons) |
| Other specifications | |
| Color options | Red/black/grey |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
