| Jawa-CZ' profilation of this bike |
| JAWA 50 Robby is the simple motorcycle convenient not only for beginners but also for people preferring small 4-stroke motorcycle for shorter distances. |
|
General moped information |
|
Model name
|

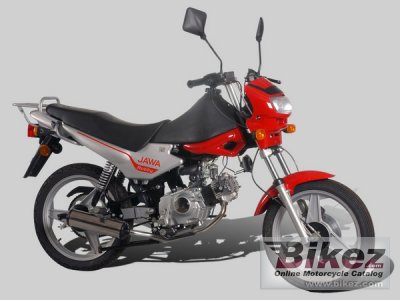

Jawa-CZ 50 Robby |
|
Year of manufacture
|
2008 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.5 ccm (3.02 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
3.0 HP (2.2 kW)) @ 9250 RPM |
|
Torque
|
3.2 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 5500 RPM |
|
Top speed
|
48.0 km/h (29.8 mph) |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
39.0 x 41.4 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic forks 80mm |
|
Rear suspension
|
Hydraulic telescopic 70mm |
|
Front tire
|
2.50-16 |
|
Rear tire
|
3.00-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
124 mm (4.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
87.0 kg (191.8 pounds) |
|
Power/weight ratio
|
0.0339 HP/kg |
|
Seat height
|
730 mm (28.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1200 mm (47.2 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
