Jawa-CZ 50 Robby 20062006 Jawa-CZ 50 Robby specifications, pictures, reviews and rating |

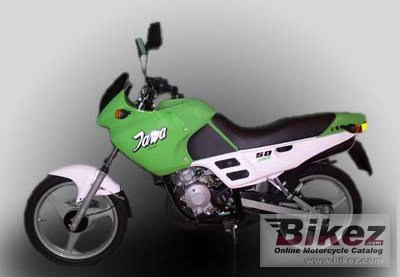

 2006 Jawa-CZ 50 Robby. Picture credits - Jawa-CZ. Submit more pictures. |
| Jawa-CZ' profilation of this bike |
| Motorcycle being successor of JAWA 50 Mosquito, is destined and homologated for the 15 years old who begin to drive, but also for motorcyclists who are desirous of small 4 stroke bike. |
| General moped information | |
|---|---|
| Model | Jawa-CZ 50 Robby |
| Year | 2006 |
| Category | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.5 ccm (3.02 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 3.4 HP (2.4 kW)) @ 8500 RPM |
| Torque | 3.2 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 5500 RPM |
| Top speed | 48.0 km/h (29.8 mph) |
| Compression | 8.5:1 |
| Bore x stroke | 39.0 x 41.4 mm (1.5 x 1.6 inches) |
| Cooling system | Air |
| Gearbox | 4-speed |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic forks 80mm |
| Rear suspension | Telescopic unit 70mm |
| Front tire | -. |
| Front brakes | Single disc |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 124 mm (4.9 inches) |
| Physical measures and capacities | |
| Dry weight | 80.0 kg (176.4 pounds) |
| Power/weight ratio | 0.0419 HP/kg |
| Seat height | 730 mm (28.7 inches) If adjustable, lowest setting. |
| Wheelbase | 1200 mm (47.2 inches) |
| Fuel capacity | 24.60 litres (6.50 US gallons) |
| Other specifications | |
| Starter | Kick |
