| Jawa-CZ' profilation of this bike |
| JAWA 50 Minarelli belongs to the full-bodied motorcycle suitable for beginners and for those who look for modern motorcycle of the quality, with reasonable output, of good quality processing and who really wants to get the best out of driving this bike. |
|
General moped information |
|
Model name
|

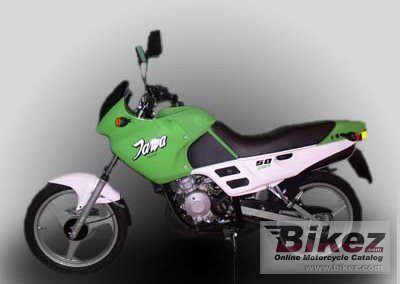

Jawa-CZ 50 Minarelli |
|
Year of manufacture
|
2006 |
|
Type
|
Sport |
|
Rating
|
3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.7 ccm (3.03 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
6.0 HP (4.4 kW)) @ 8700 RPM |
|
Torque
|
4.7 Nm (0.5 kgf-m or 3.5 ft.lbs) @ 8500 RPM |
|
Top speed
|
90.0 km/h (55.9 mph) |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic forks 170mm |
|
Rear suspension
|
Central units 150mm |
|
Front tire
|
-. |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
124 mm (4.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
88.0 kg (194.0 pounds) |
|
Power/weight ratio
|
0.0685 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1320 mm (52.0 inches) |
|
Fuel capacity
|
24.60 litres (6.50 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
