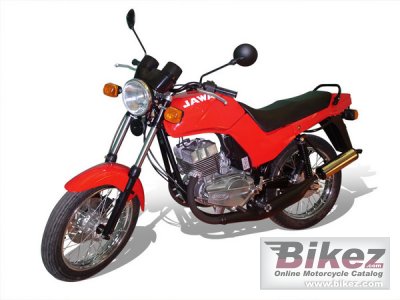

Jawa-CZ' profilation of this bike |
JAWA 350 Basic is a reliable road motorcycle. The simple design has proved reliable in many climatic conditions. |
General information |
Model
|
Jawa-CZ 350 Basic |
Year of manufacture
|
2009 |
Type
|
Sport |
Rating
|
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
Engine size
|
343.5 ccm (20.96 cubic inches) |
Type of engine
|
Twin, two-stroke |
Output
|
22.8 HP (16.6 kW)) @ 5250 RPM |
Torque
|
32.0 Nm (3.3 kgf-m or 23.6 ft.lbs) @ 4750 RPM |
Top speed
|
124.0 km/h (77.1 mph) |
Compression
|
9.8:1 |
Bore x stroke
|
58.0 x 65.0 mm (2.3 x 2.6 inches) |
Fuel system
|
Carburettor |
Cooling system
|
Air |
Gearbox
|
4-speed |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic forks |
Front wheel travel
|
150 mm (5.9 inches) |
Rear suspension
|
Telescopic units |
Rear wheel travel
|
80 mm (3.1 inches) |
Front tire
|
3.25-18 |
Rear tire
|
3.50-18 |
Front brakes
|
Single disc |
Diameter
|
265 mm (10.4 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
160 mm (6.3 inches) |
Physical measures and capacities |
Dry weight
|
149.0 kg (328.5 pounds) |
Power/weight ratio
|
0.1530 HP/kg |
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
Wheelbase
|
1370 mm (53.9 inches) |
Fuel capacity
|
17.00 litres (4.49 US gallons) |
Reserve fuel capacity
|
2.80 litres (0.74 US gallons) |
Other specifications |
Color options
|
Red/black |
Starter
|
Kick |
