General information |
|
Model name
|

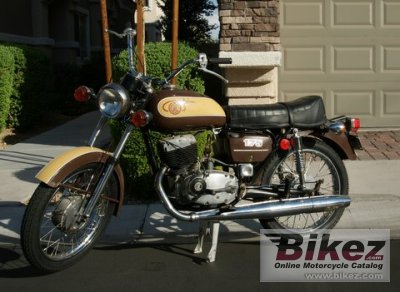

Jawa-CZ 175 |
|
Year model
|
1974 |
|
Type
|
Classic |
|
Rating
|
3.2 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
172.0 ccm (10.50 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Effect
|
15.0 HP (10.9 kW)) @ 5600 RPM |
|
Top speed
|
110.0 km/h (68.4 mph) |
|
Compression
|
8.7:1 |
|
Bore x stroke
|
58.0 x 65.0 mm (2.3 x 2.6 inches) |
|
Fuel control
|
Port control |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
2.75-18 |
|
Rear tire
|
3.25-18 |
|
Front brakes
|
Expanding brake |
|
Rear brakes
|
Expanding brake |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
120.0 kg (264.6 pounds) |
|
Fuel capacity
|
11.50 litres (3.04 US gallons) |
|
Other specifications |
