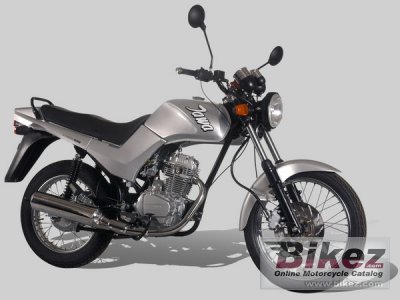

| Jawa-CZ' profilation of this bike |
| JAWA 125 Travel is designed as convenient transport for two people, it is light weight and easy to control. |
|
General information |
|
Model name
|
Jawa-CZ 125 Travel |
|
Year model
|
2009 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
12.6 HP (9.2 kW)) @ 8200 RPM |
|
Torque
|
9.2 Nm (0.9 kgf-m or 6.8 ft.lbs) @ 7000 RPM |
|
Top speed
|
95.0 km/h (59.0 mph) |
|
Fuel system
|
Carburettor |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
Hydraulic telescopic |
|
Rear wheel travel
|
70 mm (2.8 inches) |
|
Front tire
|
3.00-18 |
|
Rear tire
|
3.50-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
265 mm (10.4 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
160 mm (6.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
115.0 kg (253.5 pounds) |
|
Power/weight ratio
|
0.1096 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1370 mm (53.9 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
2.80 litres (0.74 US gallons) |
|
Other specifications |
|
Color options
|
Silver |
|
Starter
|
Electric |
