| Jawa-CZ' profilation of this bike |

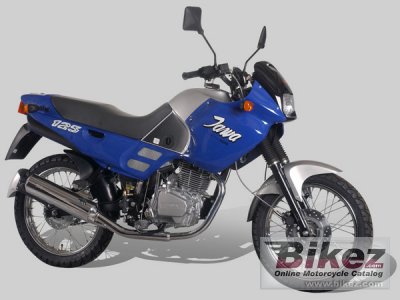

| JAWA 125 Dandy is the most basic and best selling model in the 125 cc motorcycle range. Its reliability has been proven over many years.
|
|
General information |
|
Model name
|
Jawa-CZ 125 Dandy |
|
Year of manufacture
|
2009 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
12.6 HP (9.2 kW)) |
|
Torque
|
9.2 Nm (0.9 kgf-m or 6.8 ft.lbs) |
|
Top speed
|
107.0 km/h (66.5 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Telescopic forks |
|
Rear suspension
|
Central unit |
|
Front tire
|
2.75-17 |
|
Rear tire
|
3.00-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
103.0 kg (227.1 pounds) |
|
Power/weight ratio
|
0.1223 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
