| Jawa-CZ' profilation of this bike |

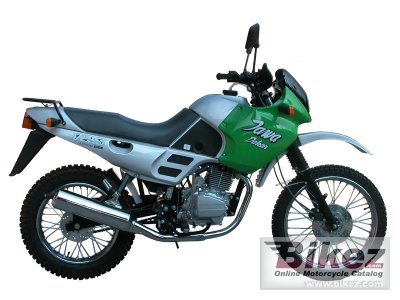

| JAWA 125 Dakar is based on the JAWA 125 Dandy model and is designed for more experienced riders especially for off road and rough tracks.
|
|
General information |
|
Model name
|
Jawa-CZ 125 Dakar |
|
Year model
|
2007 |
|
Type
|
Enduro / offroad |
|
Rating
|
2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
12.6 HP (9.2 kW)) @ 8200 RPM |
|
Torque
|
9.2 Nm (0.9 kgf-m or 6.8 ft.lbs) @ 7000 RPM |
|
Top speed
|
108.0 km/h (67.1 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic forks |
|
Rear suspension
|
Central hydraulic |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
103.0 kg (227.1 pounds) |
|
Power/weight ratio
|
0.1223 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1330 mm (52.4 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Kick |
