| Hyosung's profilation of this bike |

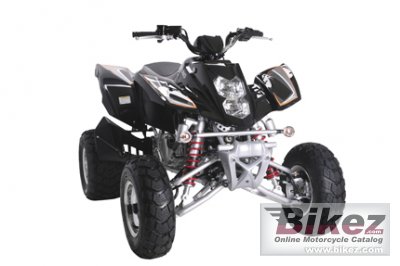

| The TE450S is Hyosung´s high-performance sports ATV, featuring fully adjustable suspension, a high-tensile frame, aluminum swingarm, alloy wheels, disc brakes front and rear, and a detachable sub-frame. |
|
General information |
|
Model name
|
Hyosung TE450S |
|
Model year
|
2011 |
|
Category
|
ATV |
| Price as new | US$ 4999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
449.0 ccm (27.40 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
52.0 HP (38.0 kW)) @ 8500 RPM |
|
Torque
|
47.6 Nm (4.9 kgf-m or 35.1 ft.lbs) @ 7000 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
96.0 x 62.0 mm (3.8 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Semi dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, Multiplate |
|
Driveline
|
Chain 520, With reverse. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double A-arm, 220mm wheel travel fully adjustable piggyback shock absorber |
|
Rear suspension
|
Aluminum alloy swing arm, 240mm wheel travel, Linkage type fully adjustable shock absorber |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/11-9 |
|
Front brakes
|
Double disc |
|
Diameter
|
170 mm (6.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
211.8 kg (467.0 pounds) |
|
Power/weight ratio
|
0.2455 HP/kg |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.87 litres (2.08 US gallons) |
|
Other specifications |
|
Color options
|
Red/black |
|
Factory warranty
|
24 months |
