| Hyosung's profilation of this bike |
| Road going trail bike with a punchy and all new Double Overhead Camshaft 4 valve 4 stroke engine with oil cooler. |
|
General information |
|
Motorcycle name
|

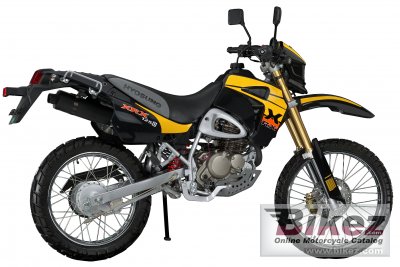

Hyosung RX 125D-E |
|
Year model
|
2009 |
|
Type
|
Trial |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
13.0 HP (9.5 kW)) @ 10000 RPM |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Upside-down forks |
|
Rear suspension
|
Monoshock |
|
Front tire
|
2.75-21 |
|
Rear tire
|
4.10-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
120.0 kg (264.6 pounds) |
|
Power/weight ratio
|
0.1083 HP/kg |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2190 mm (86.2 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
295 mm (11.6 inches) |
|
Wheelbase
|
1425 mm (56.1 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Black, orange |
|
Starter
|
Electric |
|
Comments
|
Optional read disk brake in some countries. |
