| Hyosung's profilation of this bike |
| Dynamic and compact front part is employed pursuing practicality by separable structure of parts function. |
|
General information |
|
Model name
|

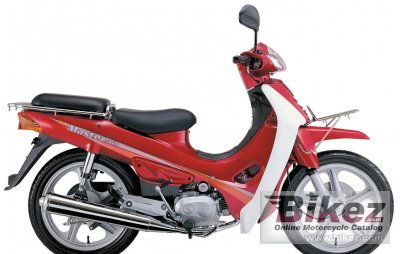

Hyosung KR110 |
|
Year of manufacture
|
2008 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
109.6 ccm (6.69 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Carburettor. UM17 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet Multi-Plate Type |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic |
|
Rear suspension
|
Swing Arm |
|
Front tire
|
70/90-P16 |
|
Rear tire
|
80/90-P16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
100.0 kg (220.5 pounds) |
|
Seat height
|
700 mm (27.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1060 mm (41.7 inches) |
|
Overall length
|
1890 mm (74.4 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Ground clearance
|
105 mm (4.1 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric & kick |
|
Comments
|
Hyosung calls this a business model. |
