| Husaberg's profilation of this bike |
| The legendary weapon for the asphalt tracks of this world turns riders into curve-hungry, acceleration addicts, while being so perfect to handle that the huge power potential remains absolutely controllable at all times. Equipped with first-class racing components, victory on the local or supermoto track is a certainty. |
|
General information |
|
Model name
|

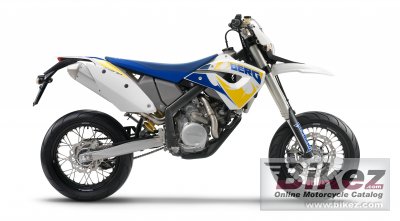

Husaberg FS 570 |
|
Year
|
2011 |
|
Category
|
Super motard |
|
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
565.5 ccm (34.51 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.2:1 |
|
Bore x stroke
|
100.0 x 72.0 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Pressure circulation, trochoit oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Driveline
|
Primary 33:76. Secondary 14:38. |
|
Exhaust system
|
2-into-1, twin manifold/nickel-plated, aluminium rear muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle perimeter design 25CrMo4. Cross-linked Polyethylene subframe. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP-USD Ø 48 mm Closed Cartridqe |
|
Front wheel travel
|
280 mm (11.0 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
310 mm (12.2 inches) |
|
Front tire
|
120/70-21 |
|
Rear tire
|
150/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
114.5 kg (252.4 pounds) |
|
Seat height
|
895 mm (35.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white/yellow |
|
Starter
|
Electric |
|
Electrical
|
12V 7Ah battery |
|
Comments
|
Swedish brand. |
