| Husaberg's profilation of this bike |
| Sports-oriented compact engine design with revolutionary layout reduced to the minimum. Optimum handling thanks to 70° cylinder angle and crankshaft position close to bike´s centre of gravity. |
|
General information |
|
Model name
|

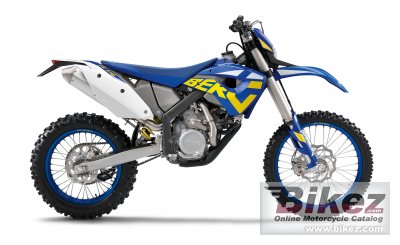

Husaberg FE 570 |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
4.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
565.5 ccm (34.51 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
OHC with rocker levers |
|
Compression
|
12.2:1 |
|
Bore x stroke
|
100.0 x 72.0 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Keihin |
|
Lubrication system
|
Ressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Driveline
|
X-Ring 5/8 x 1/4´ chain. |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle perimeter design 25CrMo4. Subframe of cross-linked polyethylene |
|
Front suspension
|
WP-USD Ø 48 mm Closed Cartridqe |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
115.0 kg (253.5 pounds) |
|
Seat height
|
985 mm (38.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
390 mm (15.4 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Other specifications |
|
Color options
|
Blue/yellow |
|
Starter
|
Electric |
|
Electrical
|
12V 7Ah battery |
|
Comments
|
Husaberg bikes are from Sweden. |
