| Husaberg's profilation of this bike |
| Mass centralisation with 70° engine layout. Optimum positioning of centre of gravity. Controllability. |
|
General information |
|
Motorcycle name
|

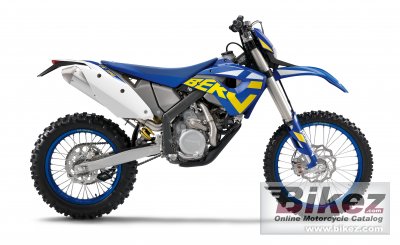

Husaberg FE 390 |
|
Year model
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
393.3 ccm (24.00 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
4 V/OHC with rocker levers |
|
Compression
|
11.1:1 |
|
Bore x stroke
|
95.0 x 55.5 mm (3.7 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Driveline
|
Primary ratio: 33:76. Secondary drive: 3:38 (13:52). X-Ring 5/8 x 1/4´. |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle perimeter design 25CrMo4. Cross-linked Polyethylene subframe. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP-USD Ø 48 mm Closed Cartridqe |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
114.0 kg (251.3 pounds) |
|
Seat height
|
985 mm (38.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
390 mm (15.4 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Color options
|
Blue/yellow |
|
Starter
|
Electric |
|
Electrical
|
12V 7Ah battery |
|
Comments
|
Made in Sweden |
