General information |
|
Model
|

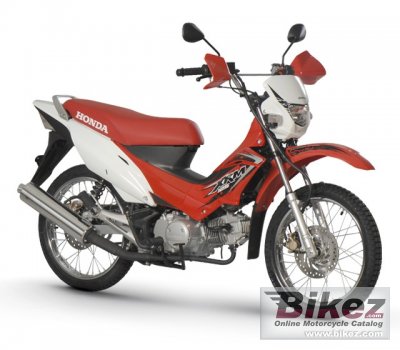

Honda XRM 125 Off-road |
|
Year
|
2013 |
|
Category
|
Scooter |
|
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.8 ccm (7.62 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
9.6 HP (7.0 kW)) @ 8000 RPM |
|
Torque
|
10.4 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 5500 RPM |
|
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
DC-CDI (Capacitor Discharge Ignition) |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Twin shocks |
|
Front tire
|
2.50-17 |
|
Rear tire
|
2.50-17 |
|
Front brakes
|
Single disc. Hydraulic, ventilated |
|
Rear brakes
|
Single disc. Hydraulic, ventilated |
|
Physical measures and capacities |
|
Dry weight
|
101.0 kg (222.7 pounds) |
|
Power/weight ratio
|
0.0950 HP/kg |
|
Seat height
|
776 mm (30.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1067 mm (42.0 inches) |
|
Overall length
|
1896 mm (74.6 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
136 mm (5.4 inches) |
|
Wheelbase
|
1239 mm (48.8 inches) |
|
Fuel capacity
|
3.80 litres (1.00 US gallons) |
|
Other specifications |
|
Color options
|
Red, black |
|
Starter
|
Kick |
|
Comments
|
Cub sold in some Asian countries. |
