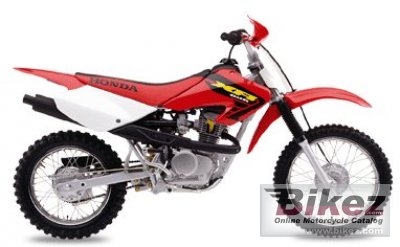

Picture by Honda. Published with permission.. Click to submit more pictures.

2002 Honda XR 80 R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Honda XR 80 R
Year:	2002
Category:	Cross / motocross
Rating:	74.6 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	80.00 ccm (4.88 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	9.7:1
Bore x stroke:	47.5 x 45.0 mm (1.9 x 1.8 inches)
Valves per cylinder:	2
Fuel control:	Single Overhead Cams (SOHC)
Cooling system:	Air
Gearbox:	5-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front wheel travel:	140 mm (5.5 inches)
Rear wheel travel:	109 mm (4.3 inches)
Front brakes:	Expanding brake
Rear brakes:	Expanding brake
Physical measures and capacities
Dry weight:	69.9 kg (154.1 pounds)
Seat height:	726 mm (28.6 inches) If adjustable, lowest setting.
Ground clearance:	206 mm (8.1 inches)
Wheelbase:	1,209 mm (47.6 inches)
Fuel capacity:	6.80 litres (1.80 gallons)
Reserve fuel capacity:	1.40 litres (0.37 gallons)
Other specifications
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Motocross parts	Parts and accessories available from Revzilla Motocross. Ships to most countries.
Ask questions	Join the 02 Honda XR 80 R discussion group or the general Honda discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.

General information

Model:

Honda XR 80 R

Year:

2002

Category:

Cross / motocross

Rating:

74.6 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

80.00 ccm (4.88 cubic inches)

Engine type:

Single cylinder, four-stroke

Compression:

9.7:1

Bore x stroke:

47.5 x 45.0 mm (1.9 x 1.8 inches)

Valves per cylinder:

Fuel control:

Single Overhead Cams (SOHC)

Cooling system:

Air

Gearbox:

5-speed

Transmission type,
final drive:

Chain

Chassis, suspension, brakes and wheels

Front wheel travel:

140 mm (5.5 inches)

Rear wheel travel:

109 mm (4.3 inches)

Front brakes:

Expanding brake

Rear brakes:

Expanding brake

Physical measures and capacities

Dry weight:

69.9 kg (154.1 pounds)

Seat height:

726 mm (28.6 inches) If adjustable, lowest setting.

Ground clearance:

206 mm (8.1 inches)

Wheelbase:

1,209 mm (47.6 inches)

Fuel capacity:

6.80 litres (1.80 gallons)

Reserve fuel capacity:

1.40 litres (0.37 gallons)

Other specifications
