Honda XR 70 R 20022002 Honda XR 70 R specifications, pictures, reviews and rating |

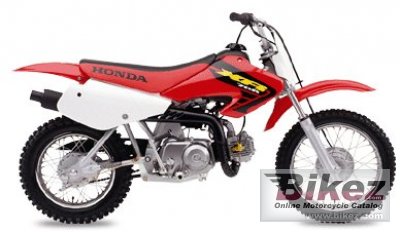

 2002 Honda XR 70 R. Picture by Honda. Published with permission.. Submit more pictures.
|
|
| General information | |
|---|---|
| Model | Honda XR 70 R |
| Year model | 2002 |
| Type | Cross / motocross |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 72.0 ccm (4.39 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 5.5 HP (4.0 kW)) |
| Top speed | 67.6 km/h (42.0 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 47.0 x 41.4 mm (1.9 x 1.6 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 13mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 3-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Trail | 70 mm (2.8 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 99 mm (3.9 inches) |
| Rear suspension | Monoshock |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 2.50-14 |
| Rear tire | 3.00-12 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 58.0 kg (127.9 pounds) |
| Power/weight ratio | 0.0948 HP/kg |
| Seat height | 655 mm (25.8 inches) If adjustable, lowest setting. |
| Overall length | 1565 mm (61.6 inches) |
| Overall width | 694 mm (27.3 inches) |
| Ground clearance | 163 mm (6.4 inches) |
| Wheelbase | 1067 mm (42.0 inches) |
| Fuel capacity | 6.80 litres (1.80 US gallons) |
| Reserve fuel capacity | 1.40 litres (0.37 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | Honda GN4 10W-40 |
| Chain size | 420 |
| Chain links | 86 |
| Sprockets | 15/36 (front/rear) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Honda XR 70 R discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2002 Honda XR 70 R for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Honda bike | |
Engine performance for the 2002 Honda XR 70 R:  (76.6 out of 100)Click here for complete rating. You can also compare bikes. |
|
