Honda's profilation of this bike |
The undisputed king of the desert: multi-time Baja champ XR650R. Does its lightweight aluminum frame and potent liquid-cooled engine have anything to do with it? You better believe it. It´s not just a premier open-class, four-stroke dirt bike. It´s THE premier open-class, four-stroke dirt bike. Period. |
General information |
Model name
|

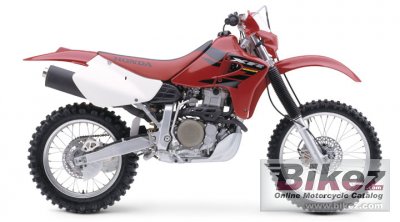

Honda XR 650 R |
Year
|
2005 |
Category
|
Enduro / offroad |
Price as new | US$ 6099. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
649.0 ccm (39.60 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
10.0:1 |
Bore x stroke
|
100.0 x 82.6 mm (3.9 x 3.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. Keihin 40mm piston-valve |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Solid-state CD with electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
27.8° |
Trail
|
111 mm (4.4 inches) |
Front suspension
|
46mm leading-axle Kayaba cartridge fork with compression- and rebound-damping adjustability |
Front wheel travel
|
284 mm (11.2 inches) |
Rear suspension
|
Pro-Link Kayaba single-shock with spring-preload, compression- and rebound-damping adjustability |
Rear wheel travel
|
307 mm (12.1 inches) |
Front tire
|
80/70-21 |
Rear tire
|
110/90-18 |
Front brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Dry weight
|
125.6 kg (277.0 pounds) |
Seat height
|
935 mm (36.8 inches) If adjustable, lowest setting. |
Ground clearance
|
305 mm (12.0 inches) |
Wheelbase
|
1481 mm (58.3 inches) |
Fuel capacity
|
9.84 litres (2.60 US gallons) |
Other specifications |
Color options
|
Red |
Comments
|
Model ID: XR650R |
