| General information |
|---|

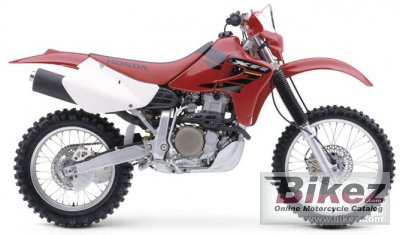

| Model | Honda XR 650 R |
| Year | 2004 |
| Category | Enduro / offroad |
| Price as new | US$ 5999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 649.0 ccm (39.60 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 100.0 x 82.6 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle) | 27.8° |
| Trail | 111 mm (4.4 inches) |
| Front suspension | 46mm leading-axle Kayaba cartridge fork with compression- and rebound-damping adjustability. |
| Front wheel travel | 284 mm (11.2 inches) |
| Rear suspension | Pro-Link Kayaba single-shock with spring-preload, compression- and rebound-damping adjustability. |
| Rear wheel travel | 307 mm (12.1 inches) |
| Front tire | 80/90-21 |
| Rear tire | 110/90-18 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Seat height | 935 mm (36.8 inches) If adjustable, lowest setting. |
| Wheelbase | 1481 mm (58.3 inches) |
| Fuel capacity | 9.84 litres (2.60 US gallons) |
| Reserve fuel capacity | 1.89 litres (0.50 US gallons) |
| Other specifications |
|---|
| Color options | Red |
| Comments | Model id XR650R. |
