Honda's profilation of this bike |
Dual-sport, dual-purpose — no matter what you call it, the XR650L puts the fun in functional. Sure, the headlight and turn signals make this bike street-legal, but at the heart of this machine lies Baja 1000-winning tech that just begs to be taken off-road too. |
General information |
Model name
|

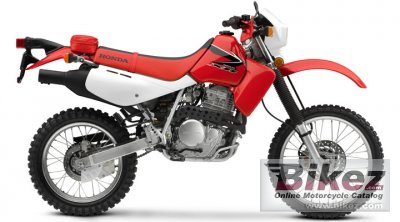

Honda XR 650 L |
Model year
|
2008 |
Category
|
Enduro / offroad |
Price as new | US$ 5949. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
644.0 ccm (39.30 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
8.3:1 |
Bore x stroke
|
100.0 x 82.0 mm (3.9 x 3.2 inches) |
Fuel system
|
Carburettor. 42.5mm diaphragm-type CV carburetor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Solid-state CD with electronic advance |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
27.0° |
Trail
|
102 mm (4.0 inches) |
Front suspension
|
43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability |
Front wheel travel
|
295 mm (11.6 inches) |
Rear suspension
|
Pro-Link Showa single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability |
Rear wheel travel
|
279 mm (11.0 inches) |
Front tire
|
70/0-17 |
Rear tire
|
90/90-14 |
Front brakes
|
Single disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Seat height
|
940 mm (37.0 inches) If adjustable, lowest setting. |
Ground clearance
|
330 mm (13.0 inches) |
Wheelbase
|
1455 mm (57.3 inches) |
Fuel capacity
|
10.59 litres (2.80 US gallons) |
Other specifications |
Color options
|
Red |
Starter
|
Electric |
Comments
|
Model ID: XR650L |
