General information |
|
Model name
|

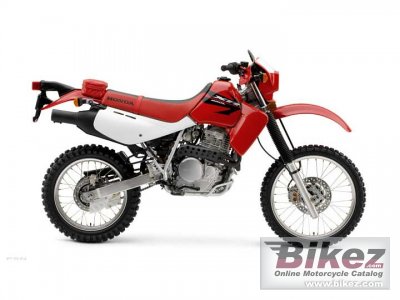

Honda XR 650 L |
|
Model year
|
2006 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 5799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
644.0 ccm (39.30 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
8.3:1 |
|
Bore x stroke
|
100.0 x 82.0 mm (3.9 x 3.2 inches) |
|
Fuel system
|
Carburettor. 42.5mm diaphragm-type CV |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Solid-state CD with electronic advance |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability |
|
Front wheel travel
|
295 mm (11.6 inches) |
|
Rear suspension
|
Pro-Link Showa single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability |
|
Rear wheel travel
|
279 mm (11.0 inches) |
|
Front tire
|
80/70-21 |
|
Rear tire
|
110/90-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
147.0 kg (324.0 pounds) |
|
Seat height
|
940 mm (37.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
330 mm (13.0 inches) |
|
Wheelbase
|
1455 mm (57.3 inches) |
|
Fuel capacity
|
10.59 litres (2.80 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Comments
|
Model ID: XR650L |
