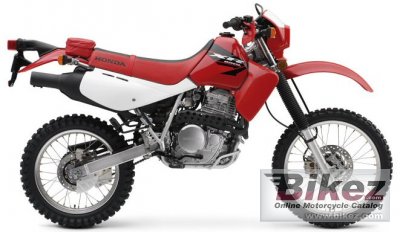

Honda XR 650 L 20052005 Honda XR 650 L specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Yes, the headlight and blinkers make this bike street-legal. But if you stick only to the asphalt, the XR650-L is gonna get restless. Make no mistake, this is a Baja-ready, 644cc direct machine. Did we also mention that it´s street-legal? |
| General information | |
|---|---|
| Motorcycle name | Honda XR 650 L |
| Year of manufacture | 2005 |
| Type | Enduro / offroad |
| Price as new | US$ 5599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 644.0 ccm (39.30 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 58.5 HP (42.7 kW)) |
| Torque | 51.9 Nm (5.3 kgf-m or 38.3 ft.lbs) |
| Compression | 8.3:1 |
| Bore x stroke | 100.0 x 82.0 mm (3.9 x 3.2 inches) |
| Fuel system | Carburettor. 42.5mm diaphragm-type CV |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Solid-state CD with electronic advance |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Heavy duty multi-plate clutch |
| Driveline | #520 O-ring-sealed chain; 15T/45T |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 27.0° |
| Trail | 102 mm (4.0 inches) |
| Front suspension | 43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability |
| Front wheel travel | 295 mm (11.6 inches) |
| Rear suspension | Pro-Link Showa single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability |
| Rear wheel travel | 279 mm (11.0 inches) |
| Front tire | 80/70-21 |
| Rear tire | 110/90-18 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 147.0 kg (324.0 pounds) |
| Weight incl. oil, gas, etc | 158.0 kg (348.3 pounds) |
| Power/weight ratio | 0.3979 HP/kg |
| Seat height | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Ground clearance | 330 mm (13.0 inches) |
| Wheelbase | 1455 mm (57.3 inches) |
| Fuel capacity | 10.59 litres (2.80 US gallons) |
| Oil capacity | 1.90 litres (2.01 US quarts) |
| Other specifications | |
| Color options | Red |
| Starter | Electric |
| Comments | Model ID: XR650L |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Honda XR 650 L discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
