Honda XR 50 R 2002

2002 Honda XR 50 R specifications, pictures, reviews and rating

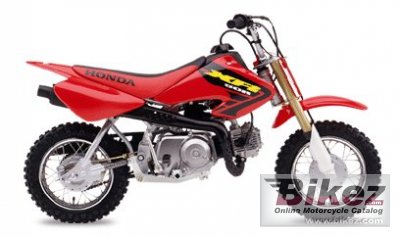

2002 Honda XR 50 R. Picture by Honda. Published with permission.. Submit more pictures.

General moped information
Model:	Honda XR 50 R
Year:	2002
Category:	Cross / motocross
Rating:	3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement:	49.0 ccm (2.99 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	10.0:1
Bore x stroke:	39.0 x 41.4 mm (1.5 x 1.6 inches)
Valves per cylinder:	2
Fuel control:	Single Overhead Cams (SOHC)
Cooling system:	Air
Gearbox:	3-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front wheel travel:	97 mm (3.8 inches)
Rear wheel travel:	71 mm (2.8 inches)
Front brakes:	Expanding brake
Rear brakes:	Expanding brake
Physical measures and capacities
Dry weight:	47.2 kg (104.1 pounds)
Seat height:	551 mm (21.7 inches) If adjustable, lowest setting.
Ground clearance:	150 mm (5.9 inches)
Wheelbase:	914 mm (36.0 inches)
Fuel capacity:	3.60 litres (0.95 gallons)
Reserve fuel capacity:	0.90 litres (0.24 gallons)
Other specifications
