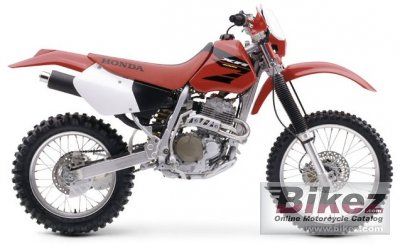

Honda XR 400 R 20042004 Honda XR 400 R specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| No matter how tough the ride, the XR400R has what it takes to meet almost any off-road challenge. With its seamless balance of power, handling and weight, there´s a reason it´s America´s most popular 400cc trail machine. |
| General information | |
|---|---|
| Model name | Honda XR 400 R |
| Year model | 2004 |
| Type | Enduro / offroad |
| Price as new | US$ 5299. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 397.0 ccm (24.22 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.3:1 |
| Bore x stroke | 85.0 x 70.0 mm (3.3 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 25.3° |
| Trail | 94 mm (3.7 inches) |
| Front suspension | 43mm leading-axle Showa cartridge fork with 18-position compression and 12-position rebound-damping adjustability |
| Front wheel travel | 279 mm (11.0 inches) |
| Rear suspension | Pro-Link Showa single-shock with spring-preload, 16-position compression and 16-position rebound-damping adjustability. |
| Rear wheel travel | 300 mm (11.8 inches) |
| Front tire | 80/90-21 |
| Rear tire | 110/90-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Seat height | 930 mm (36.6 inches) If adjustable, lowest setting. |
| Wheelbase | 1425 mm (56.1 inches) |
| Fuel capacity | 9.46 litres (2.50 US gallons) |
| Reserve fuel capacity | 1.51 litres (0.40 US gallons) |
| Other specifications | |
| Color options | Red |
| Comments | Model id XR400R. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Honda XR 400 R discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2004 Honda XR 400 R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Honda bike | |
Fun-factor for the 2004 Honda XR 400 R:  (85.7 out of 100)Click here for complete rating. |
|
