Honda XR 400 R 20022002 Honda XR 400 R specifications, pictures, reviews and rating |

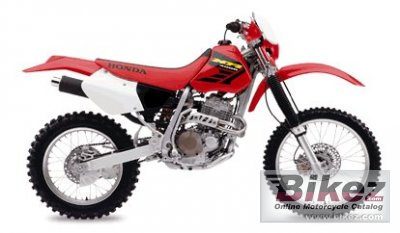

2002 Honda XR 400 R. Picture by Honda. Published with permission.. Submit more pictures. |
|
General information | |
---|---|
Model name | Honda XR 400 R |
Model year | 2002 |
Category | Cross / motocross |
Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission | |
Displacement | 397.0 ccm (24.22 cubic inches) |
Engine type | Single cylinder, four-stroke |
Compression | 9.3:1 |
Bore x stroke | 85.0 x 70.0 mm (3.3 x 2.8 inches) |
Valves per cylinder | 4 |
Fuel control | Single Overhead Cams (SOHC) |
Cooling system | Air |
Gearbox | 5-speed |
Transmission type | Chain (final drive) |
Chassis, suspension, brakes and wheels | |
Front wheel travel | 279 mm (11.0 inches) |
Rear wheel travel | 300 mm (11.8 inches) |
Front tire | 80/100-21 |
Rear tire | 110/100-18 |
Front brakes | Single disc |
Rear brakes | Single disc |
Physical measures and capacities | |
Dry weight | 116.6 kg (257.1 pounds) |
Seat height | 930 mm (36.6 inches) If adjustable, lowest setting. |
Ground clearance | 310 mm (12.2 inches) |
Wheelbase | 1425 mm (56.1 inches) |
Fuel capacity | 11.40 litres (3.01 US gallons) |
Reserve fuel capacity | 1.80 litres (0.48 US gallons) |
Other specifications | |
Update specs | Report missing specs or required updates. |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder | CMSNL provides online schematics & OEM parts and ships to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 02 Honda XR 400 R discussion group or the general Honda discussion group. |
Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2002 Honda XR 400 R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
Rating sample for this Honda bike | |
Offroad capabilities for the 2002 Honda XR 400 R: (76.7 out of 100) Click here for complete rating. You can also compare bikes. |
