Honda XR 230 Motard 20112011 Honda XR 230 Motard specifications, pictures, reviews and rating |

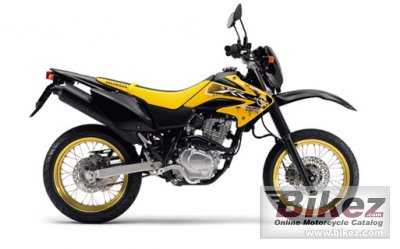

 2011 Honda XR 230 Motard. Picture credits - Honda. Submit more pictures.
|
| General information | |
|---|---|
| Model | Honda XR 230 Motard |
| Year model | 2011 |
| Type | Super motard |
| Rating | 2.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Torque | 18.0 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 5500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 65.5 x 66.2 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Lubrication system | Pumping spray |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 23.0° |
| Trail | 63 mm (2.5 inches) |
| Front suspension | Telescopic fork |
| Rear suspension | Pro-Link swing arm |
| Front tire | 110/70-17 |
| Rear tire | 130/70-17 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 125.0 kg (275.6 pounds) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1080 mm (42.5 inches) |
| Overall length | 2015 mm (79.3 inches) |
| Overall width | 815 mm (32.1 inches) |
| Ground clearance | 236 mm (9.3 inches) |
| Wheelbase | 1340 mm (52.8 inches) |
| Fuel capacity | 8.71 litres (2.30 US gallons) |
| Other specifications | |
| Color options | Yellow/black, grey/black |
| Starter | Electric |
| Comments | Sold in the Asian market |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Honda XR 230 Motard discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2011 Honda XR 230 Motard for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Honda bike | |
Engine performance for the 2011 Honda XR 230 Motard:  (53.8 out of 100)Click here for complete rating. You can also compare bikes. |
|
