2002 Honda XR 200 R

Honda XR 200 R 2002


2002 Honda XR 200 R specifications, pictures, reviews and rating

2002 Honda XR 200 R

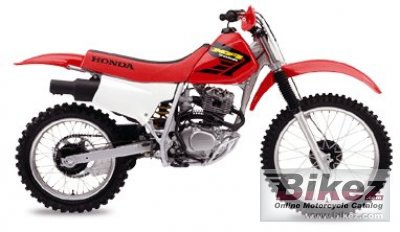

2002 Honda XR 200 R. Picture by Honda. Published with permission.. Submit more pictures.
General information
Model Honda XR 200 R
Year 2002
Category Cross / motocross
Rating 3.7  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement 195.0 ccm (11.90 cubic inches)
Engine type Single cylinder, four-stroke
Compression 10.0:1
Bore x stroke 65.5 x 57.8 mm (2.6 x 2.3 inches)
Valves per cylinder 2
Fuel control Single Overhead Cams (SOHC)
Cooling system Air
Gearbox 6-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front wheel travel 208 mm (8.2 inches)
Rear wheel travel 211 mm (8.3 inches)
Front tire 80/100-21
Rear tire 100/100-17
Front brakes Expanding brake
Rear brakes Expanding brake
Physical measures and capacities
Dry weight 101.0 kg (222.7 pounds)
Seat height 851 mm (33.5 inches) If adjustable, lowest setting.
Ground clearance 277 mm (10.9 inches)
Wheelbase 1359 mm (53.5 inches)
Fuel capacity 10.90 litres (2.88 US gallons)
Reserve fuel capacity 1.80 litres (0.48 US gallons)
Other specifications
