General information |
Model name
|

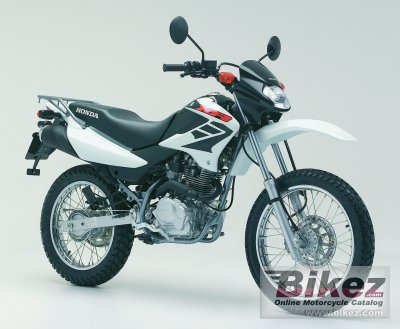

Honda XR 125 |
Year model
|
2007 |
Type
|
Enduro / offroad |
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.0 ccm (7.57 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Effect
|
15.0 HP (10.9 kW)) @ 8500 RPM |
Torque
|
10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 7000 RPM |
Compression
|
9.5:1 |
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
Digital transistorised with electronic advance |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
31mm telescopic fork, 180mm axle travel |
Rear suspension
|
Monoshock damper, 160mm axle travel |
Front brakes
|
Double disc |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Dry weight
|
115.5 kg (254.6 pounds) |
Power/weight ratio
|
0.1299 HP/kg |
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
Overall length
|
2060 mm (81.1 inches) |
Ground clearance
|
250 mm (9.8 inches) |
Fuel capacity
|
12.00 litres (3.17 US gallons) |
Other specifications |
Starter
|
Electric |
