Honda XR 100 R 20042004 Honda XR 100 R specifications, pictures, reviews and rating |

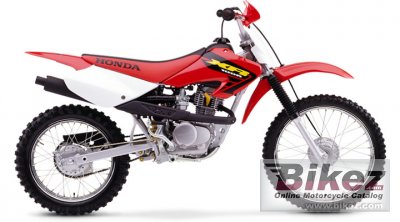

2004 Honda XR 100 R. Image credits - Honda.
| Honda's profilation of this bike |
| Don´t think the XR100R is any less tough than its bigger brothers. Fun-to-ride, versatile and reliable—this bike is undeniably Honda. And new Honda Racing-inspired graphics complement the XR100R´s incredible package. |
| General information | |
|---|---|
| Model name | Honda XR 100 R |
| Year of manufacture | 2004 |
| Type | Enduro / offroad |
| Price as new | US$ 2099. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 99.0 ccm (6.04 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.4:1 |
| Bore x stroke | 53.0 x 45.0 mm (2.1 x 1.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.9° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | 27mm leading-axle Showa fork. |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Pro-Link Showa single-shock. |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Ground clearance | 254 mm (10.0 inches) |
| Wheelbase | 1265 mm (49.8 inches) |
| Fuel capacity | 5.67 litres (1.50 US gallons) |
| Reserve fuel capacity | 1.13 litres (0.30 US gallons) |
| Other specifications | |
| Color options | Red |
| Comments | Model id XR100R. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Honda XR 100 R discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
