General information |
Model
|

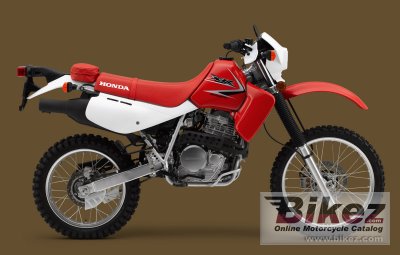

Honda XR650L |
Year of manufacture
|
2009 |
Type
|
Enduro / offroad |
Price as new | US$ 5999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
644.0 ccm (39.30 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Torque
|
51.9 Nm (5.3 kgf-m or 38.3 ft.lbs) |
Compression
|
8.3:1 |
Bore x stroke
|
100.0 x 82.0 mm (3.9 x 3.2 inches) |
Fuel system
|
Carburettor. 42.5mm diaphragm-type CV |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Solid-state CD with electronic advance |
Lubrication system
|
Dry sump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Heavy duty multi-plate clutch |
Driveline
|
#520 O-ring-sealed chain; 15T/45T |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
27.0° |
Trail
|
102 mm (4.0 inches) |
Front suspension
|
43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability |
Front wheel travel
|
295 mm (11.6 inches) |
Rear suspension
|
Pro-link Showa single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability |
Rear wheel travel
|
279 mm (11.0 inches) |
Front tire
|
3.00-21 |
Rear tire
|
4.60-18 |
Front brakes
|
Double disc. Two-piston calipers. |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc. Single-piston caliper. |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Dry weight
|
147.0 kg (324.1 pounds) |
Weight incl. oil, gas, etc
|
156.9 kg (346.0 pounds) |
Seat height
|
940 mm (37.0 inches) If adjustable, lowest setting. |
Ground clearance
|
330 mm (13.0 inches) |
Wheelbase
|
1455 mm (57.3 inches) |
Fuel capacity
|
10.59 litres (2.80 US gallons) |
Oil capacity
|
1.90 litres (2.01 US quarts) |
Other specifications |
Color options
|
Red |
Starter
|
Electric |
Comments
|
Model ID: XR650L |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
Engine oil
|
SAE 10W-40 |
Oil filter
|
K & N KN-112 |
Brake fluid
|
DOT 4 |
Coolant
|
2.00 litres (0.53 US gallons) |
Battery
|
YTX9-BS |
Spark plugs
|
NGK BKR8E-11 |
Idle speed
|
1400 +/- 100 RPM |
Chain size
|
520 |
Chain links
|
110 |
Sprockets
|
14/45 (front/rear) |
Tire pressure front
|
22 PSI (1.5 Bar or 150 kPa) |
Tire pressure rear
|
22 PSI (1.5 Bar or 150 kPa) |
Fork tube size
|
46 mm (1.8 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
