Honda's profilation of this bike |
Whenever that irresistible urge to go somewhere you’ve never gone before strikes you, what do you do? Well, if you’re aboard Honda’s popular, trailblazing XL650V Transalp, you’re never at a loss for a lively response: you just go. The versatile and long-legged Transalp takes you down well-travelled highways and deep off the beaten path with equal ease and enjoyment, and its low-profile seat version lets even shorter legged riders take full advantage of its ‘go-anywhere’ capabilities.
|
General information |
Model name
|

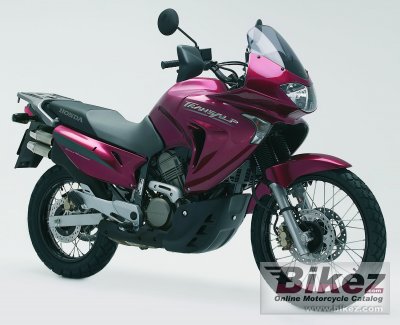

Honda XL 650 L Transalp |
Year model
|
2006 |
Type
|
Enduro / offroad |
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
647.0 ccm (39.48 cubic inches) |
Type of engine
|
V2, four-stroke |
Engine details
|
Twin sparks per cyclinder |
Effect
|
52.3 HP (38.2 kW)) @ 7500 RPM |
Torque
|
55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
Compression
|
9.2:1 |
Bore x stroke
|
79.0 x 66.0 mm (3.1 x 2.6 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Carburettor. 34mm slant-type CV-type carburettor x 2 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital transistorised with electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Trail
|
108 mm (4.3 inches) |
Front wheel travel
|
220 mm (8.7 inches) |
Rear suspension
|
172 |
Front brakes
|
Double disc. 2-piston calipers |
Diameter
|
256 mm (10.1 inches) |
Rear brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Dry weight
|
191.0 kg (421.1 pounds) |
Power/weight ratio
|
0.2738 HP/kg |
Seat height
|
843 mm (33.2 inches) If adjustable, lowest setting. |
Ground clearance
|
192 mm (7.6 inches) |
Wheelbase
|
1505 mm (59.3 inches) |
Fuel capacity
|
19.00 litres (5.02 US gallons) |
Other specifications |
Starter
|
Electric |
