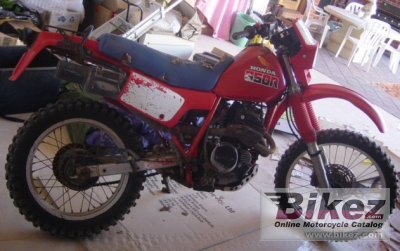

Honda XL 350 R 19861986 Honda XL 350 R specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Honda XL 350 R |
| Year of manufacture | 1986 |
| Type | Cross / motocross |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 340.0 ccm (20.75 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 27.0 HP (19.7 kW)) @ 7500 RPM |
| Top speed | 134.0 km/h (83.3 mph) |
| Compression | 9.5:1 |
| Bore x stroke | 84.0 x 61.3 mm (3.3 x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 3.00-21 |
| Rear tire | 4.60-17 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 137.0 kg (302.0 pounds) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Other specifications | |
