General information |
Model name
|

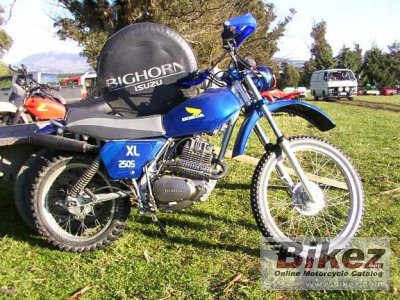

Honda XL 250 S |
Year of manufacture
|
1980 |
Type
|
Enduro / offroad |
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
248.0 ccm (15.13 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
17.0 HP (12.4 kW)) @ 7000 RPM |
Torque
|
19.6 Nm (2.0 kgf-m or 14.5 ft.lbs) @ 4500 RPM |
Top speed
|
111.0 km/h (69.0 mph) |
Compression
|
9.1:1 |
Bore x stroke
|
74.0 x 57.8 mm (2.9 x 2.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. Single 28mm Keihin |
Fuel control
|
Overhead Cams (OHC) |
Ignition
|
Electronic |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet multi-plate |
Chassis, suspension, brakes and wheels |
Front suspension
|
Oil damper telescopic forks |
Rear suspension
|
Swinging fork |
Front tire
|
3.00-23 |
Rear tire
|
4.60-18 |
Front brakes
|
Expanding brake (drum brake) |
Diameter
|
155 mm (6.1 inches) |
Rear brakes
|
Expanding brake |
Diameter
|
140 mm (5.5 inches) |
Physical measures and capacities |
Dry weight
|
118.0 kg (260.1 pounds) |
Weight incl. oil, gas, etc
|
132.0 kg (291.0 pounds) |
Power/weight ratio
|
0.1441 HP/kg |
Seat height
|
848 mm (33.4 inches) If adjustable, lowest setting. |
Overall length
|
2174 mm (85.6 inches) |
Wheelbase
|
1389 mm (54.7 inches) |
Fuel capacity
|
9.50 litres (2.51 US gallons) |
Other specifications |
Starter
|
Kick |
