Honda XL 250 R 19841984 Honda XL 250 R specifications, pictures, reviews and rating |

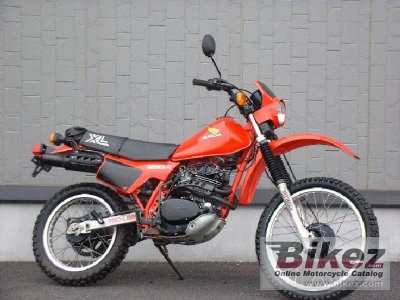

1984 Honda XL 250 R. Submitted by anonymous user..
| General information | |
|---|---|
| Model | Honda XL 250 R |
| Year | 1984 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 249.0 ccm (15.19 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 17.0 HP (12.4 kW)) @ 8000 RPM |
| Torque | 19.6 Nm (2.0 kgf-m or 14.5 ft.lbs) @ 14500 RPM |
| Top speed | 110.0 km/h (68.4 mph) |
| Compression | 10.2:1 |
| Bore x stroke | 75.0 x 56.5 mm (3.0 x 2.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. 28mm Keihin |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Electronic |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-plate |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Air assisted telescopic fork |
| Front wheel travel | 210 mm (8.3 inches) |
| Rear suspension | Single shock, swing arm |
| Rear wheel travel | 109 mm (4.3 inches) |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 75.0 kg (165.3 pounds) |
| Weight incl. oil, gas, etc | 131.0 kg (288.8 pounds) |
| Power/weight ratio | 0.2267 HP/kg |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Oil capacity | 1.50 litres (1.59 US quarts) |
| Other specifications | |
| Starter | Kick |
| Electrical | YUASA 6N6-3B battery. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | Honda GN4 10W-40 |
| Spark plugs | NGK D8EA |
| Idle speed | 1300 +/- 100 RPM |
| Chain size | 520 |
| Chain links | 102 |
| Sprockets | 13/38 (front/rear) |
| Tire pressure front | 22 PSI (1.5 Bar or 150 kPa) |
| Tire pressure rear | 22 PSI (1.5 Bar or 150 kPa) |
| Fork tube size | 35 mm (1.4 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
