Honda XL 250 19751975 Honda XL 250 specifications, pictures, reviews and rating |

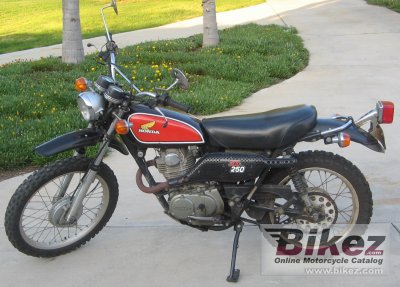

 1975 Honda XL 250. Picture credits - Ray Vick. Submit more pictures.
|
|
| General information | |
|---|---|
| Model | Honda XL 250 |
| Year | 1975 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 248.0 ccm (15.13 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 20.0 HP (14.6 kW)) @ 7700 RPM |
| Top speed | 120.0 km/h (74.6 mph) |
| Compression | 9.1:1 |
| Bore x stroke | 74.0 x 57.8 mm (2.9 x 2.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin, 28mm |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiple disc in oil bath |
| Chassis, suspension, brakes and wheels | |
| Frame type | Semi double cradle |
| Front suspension | Telescopic forks |
| Rear suspension | Swinging fork |
| Front tire | 2.75-21 |
| Rear tire | 4.00-18 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 150 mm (5.9 inches) |
| Rear brakes | Expanding brake |
| Diameter | 140 mm (5.5 inches) |
| Physical measures and capacities | |
| Dry weight | 135.6 kg (298.9 pounds) |
| Weight incl. oil, gas, etc | 148.0 kg (326.3 pounds) |
| Power/weight ratio | 0.1475 HP/kg |
| Fuel capacity | 8.00 litres (2.11 US gallons) |
| Other specifications | |
| Color options | Black/red |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 75 Honda XL 250 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 1975 Honda XL 250 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Honda bike | |
Touring capabilities for the 1975 Honda XL 250:  (59.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
