1976 Honda XL 125

Honda XL 125 1976


1976 Honda XL 125 specifications, pictures, reviews and rating

1976 Honda XL 125

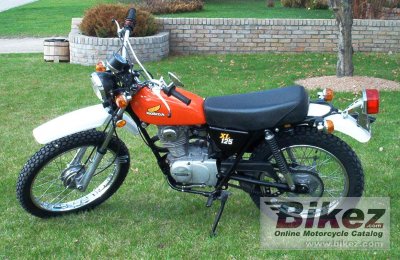

1976 Honda XL 125. Picture credits - Jon Elliott. Submit more pictures.
General information
Motorcycle name Honda XL 125
Year 1976
Category Enduro / offroad
Rating 3.8  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement 124.0 ccm (7.57 cubic inches)
Engine type Single cylinder, four-stroke
Power 13.0 HP (9.5 kW)) @ 9400 RPM
Top speed 114.0 km/h (70.8 mph)
Compression 9.4:1
Bore x stroke 56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves per cylinder 2
Fuel control Overhead Cams (OHC)
Cooling system Air
Gearbox 5-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front tire 2.75-21
Rear tire 3.50-18
Front brakes Expanding brake
Rear brakes Expanding brake
Physical measures and capacities
Weight incl. oil, gas, etc 110.0 kg (242.5 pounds)
Fuel capacity 6.00 litres (1.59 US gallons)
