General information |
|
Model name
|

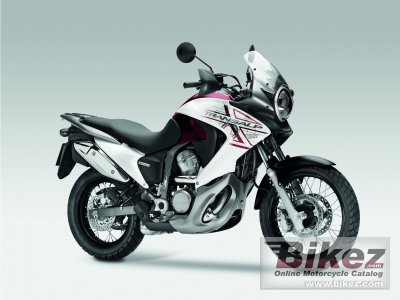

Honda XL700V Transalp ABS |
|
Year of manufacture
|
2010 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
680.2 ccm (41.51 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
59.1 HP (43.2 kW)) @ 7750 RPM |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
81.0 x 66.0 mm (3.2 x 2.6 inches) |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital transistorised with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
41 mm leading-axle telescopic fork,177 mm axle travel |
|
Rear suspension
|
Pro-Link with adjustable compression damping, 173 mm axle travel |
|
Front tire
|
100/90-R19 |
|
Rear tire
|
130/80-R17 |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
256 mm (10.1 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
218.0 kg (480.6 pounds) |
|
Power/weight ratio
|
0.2713 HP/kg |
|
Seat height
|
841 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1305 mm (51.4 inches) |
|
Overall length
|
2250 mm (88.6 inches) |
|
Overall width
|
905 mm (35.6 inches) |
|
Ground clearance
|
177 mm (7.0 inches) |
|
Wheelbase
|
1515 mm (59.6 inches) |
|
Fuel capacity
|
17.50 litres (4.62 US gallons) |
|
Other specifications |
|
Color options
|
Black, black/red/white, red/white |
|
Starter
|
Electric |
