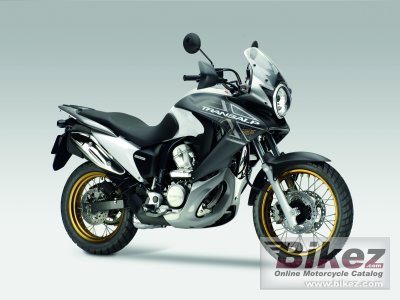

Honda XL700V Transalp 20122012 Honda XL700V Transalp specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The XL700V Transalp is a highly versatile mid-sized motorcycle. Its Adventure Sports styling is characterised by compact, sporty bodywork and unique graphics. The heart of the XL700V Transalp is a smooth-revving 680cc fuel-injected V-twin engine. It delivers impressive roll-on acceleration and strong, torque-filled performance, especially in its wide midrange. |
| General information | |
|---|---|
| Model | Honda XL700V Transalp |
| Year | 2012 |
| Category | Super motard |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 680.2 ccm (41.51 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 59.1 HP (43.2 kW)) @ 7750 RPM |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 81.0 x 66.0 mm (3.2 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. PGM-FI electronic fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital transistorised with electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Driveline | O-ring sealed chain |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 41 mm leading-axle telescopic fork,177 mm axle travel |
| Rear suspension | Pro-Link with adjustable compression damping, 173 mm axle travel |
| Front tire | 100/90-R19 |
| Rear tire | 130/80-R17 |
| Front brakes | Double disc. Dual-piston Combined three-piston callipers, ABS and sintered metal pads |
| Diameter | 256 mm (10.1 inches) |
| Rear brakes | Single disc. Combined single-piston calliper, ABS and resin mould pads |
| Diameter | 240 mm (9.4 inches) |
| Wheels | Aluminium rim |
| Physical measures and capacities | |
| Dry weight | 218.0 kg (480.6 pounds) |
| Power/weight ratio | 0.2713 HP/kg |
| Seat height | 841 mm (33.1 inches) If adjustable, lowest setting. |
| Overall length | 2250 mm (88.6 inches) |
| Overall width | 905 mm (35.6 inches) |
| Ground clearance | 177 mm (7.0 inches) |
| Wheelbase | 1515 mm (59.6 inches) |
| Fuel capacity | 17.50 litres (4.62 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Other specifications | |
| Color options | Blue/white, black, silver/grey |
| Starter | Electric |
