Honda VTX 1800 S 20022002 Honda VTX 1800 S specifications, pictures, reviews and rating |

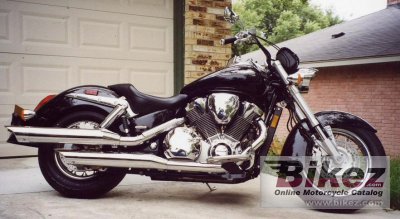

 2002 Honda VTX 1800 S. Picture credits - robert Chasse. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Honda VTX 1800 S |
| Year | 2002 |
| Category | Custom / cruiser |
| Rating | 4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1795.0 ccm (109.53 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 107.0 HP (78.1 kW)) @ 5000 RPM |
| Torque | 163.0 Nm (16.6 kgf-m or 120.2 ft.lbs) @ 3000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 101.0 x 112.0 mm (4.0 x 4.4 inches) |
| Valves per cylinder | 3 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 150/80-17 |
| Rear tire | 180/70-15 |
| Front brakes | Dual disc |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Dry weight | 335.2 kg (739.0 pounds) |
| Power/weight ratio | 0.3192 HP/kg |
| Seat height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1715 mm (67.5 inches) |
| Fuel capacity | 24.10 litres (6.37 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Honda VTX 1800 S discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2002 Honda VTX 1800 S discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Honda bike | |
Value for money for the 2002 Honda VTX 1800 S:  (88.8 out of 100)Click here for complete rating. You can also compare bikes. |
|
