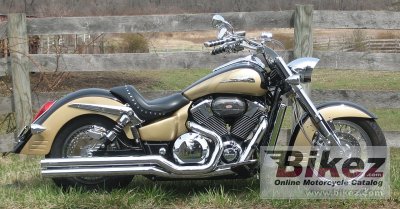

Honda VTX 1800 Retro Cruiser 20062006 Honda VTX 1800 Retro Cruiser specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| This VTX Retro boasts classic, custom-styled fenders for a timeless look. • Tank-Mounted Speedometer • Mako Muffler Exhaust Tips • Cast Aluminum Wheels |
| General information | |
|---|---|
| Motorcycle name | Honda VTX 1800 Retro Cruiser |
| Year of manufacture | 2006 |
| Type | Custom / cruiser |
| Price as new | US$ 13399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1795.0 ccm (109.53 cubic inches) |
| Type of engine | V2, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 101.0 x 112.0 mm (4.0 x 4.4 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection. Programmed Fuel Injection (PGM-FI) with automatic choke |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 163 mm (6.4 inches) |
| Front suspension | 45.0mm inverted fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 150/80-R17 |
| Rear tire | 180/70-R16 |
| Front brakes | Double disc |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Dry weight | 340.2 kg (750.0 pounds) |
| Seat height | 696 mm (27.4 inches) If adjustable, lowest setting. |
| Wheelbase | 1715 mm (67.5 inches) |
| Fuel capacity | 20.06 litres (5.30 US gallons) |
| Other specifications | |
| Color options | Black, Metallic Silver/Black, Dark Red/Black |
| Starter | Electric |
| Comments | Model ID: VTX1800R1 (Style R) |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Honda VTX 1800 Retro Cruiser discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2006 Honda VTX 1800 Retro Cruiser or advertise any other MC for sale. You can list all 2006 Honda VTX 1800 Retro Cruiser available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Honda bike | |
Engine performance for the 2006 Honda VTX 1800 Retro Cruiser:  (83.0 out of 100)Click here for complete rating. |
|
