2002 Honda VTX 1800 R

Honda VTX 1800 R 2002


2002 Honda VTX 1800 R specifications, pictures, reviews and rating

2002 Honda VTX 1800 R

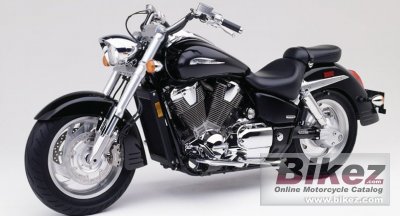

2002 Honda VTX 1800 R. Picture by Honda. Published with permission.. Submit more pictures.
General information
Model Honda VTX 1800 R
Year model 2002
Type Custom / cruiser
Rating 4.1  See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike.
Engine and transmission
Engine size 1795.0 ccm (109.53 cubic inches)
Type of engine V2, four-stroke
Effect 107.0 HP (78.1 kW)) @ 5000 RPM
Torque 163.0 Nm (16.6 kgf-m or 120.2 ft.lbs) @ 3000 RPM
Compression 9.0:1
Bore x stroke 101.0 x 112.0 mm (4.0 x 4.4 inches)
Valves per cylinder 3
Fuel control Single Overhead Cams (SOHC)
Cooling system Liquid
Gearbox 5-speed
Transmission type Shaft drive (cardan) (final drive)
Chassis, suspension, brakes and wheels
Front wheel travel 130 mm (5.1 inches)
Rear wheel travel 99 mm (3.9 inches)
Front tire 150/80-R17
Rear tire 180/70-R16
Front brakes Dual disc
Diameter 296 mm (11.7 inches)
Rear brakes Single disc
Diameter 316 mm (12.4 inches)
Physical measures and capacities
Dry weight 335.2 kg (739.0 pounds)
Power/weight ratio 0.3192 HP/kg
Seat height 693 mm (27.3 inches) If adjustable, lowest setting.
Wheelbase 1715 mm (67.5 inches)
Fuel capacity 24.10 litres (6.37 US gallons)
