Honda VTX 1800 C 20022002 Honda VTX 1800 C specifications, pictures, reviews and rating |

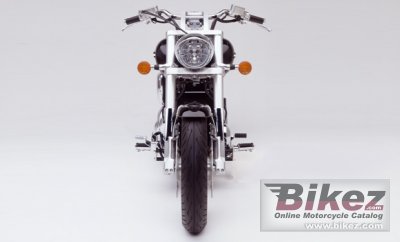

2002 Honda VTX 1800 C. Image by Honda. Published with permission..
| General information | |
|---|---|
| Model | Honda VTX 1800 C |
| Model year | 2002 |
| Category | Custom / cruiser |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1795.0 ccm (109.53 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 107.0 HP (78.1 kW)) @ 5000 RPM |
| Torque | 163.0 Nm (16.6 kgf-m or 120.2 ft.lbs) @ 3000 RPM |
| Top speed | 180.0 km/h (111.8 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 101.0 x 112.0 mm (4.0 x 4.4 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Solid-state digital, two spark plugs per cylinder |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, double cradle |
| Rake (fork angle) | 32.4° |
| Trail | 152 mm (6.0 inches) |
| Front suspension | 45 mm inverted fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Dual shocks with five-position spring preload adjustability |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 130/70-18 |
| Rear tire | 180/70-16 |
| Front brakes | Double disc |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Dry weight | 320.0 kg (705.5 pounds) |
| Weight incl. oil, gas, etc | 341.0 kg (751.8 pounds) |
| Power/weight ratio | 0.3344 HP/kg |
| Seat height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 2455 mm (96.7 inches) |
| Overall width | 990 mm (39.0 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1715 mm (67.5 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Oil capacity | 3.70 litres (3.91 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Brake fluid | DOT 4 |
| Coolant | 3.00 litres (0.79 US gallons) |
| Spark plugs | NGK IFR6L-11 |
| Idle speed | 800 +/- 100 RPM |
| Tire pressure front | 33 PSI (2.3 Bar or 225 kPa) |
| Tire pressure rear | 33 PSI (2.3 Bar or 225 kPa) |
| Fork tube size | 45 mm (1.8 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Honda VTX 1800 C discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2002 Honda VTX 1800 C for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Honda bike | |
Reliability for the 2002 Honda VTX 1800 C:  (92.4 out of 100)Click here for complete rating. |
|
