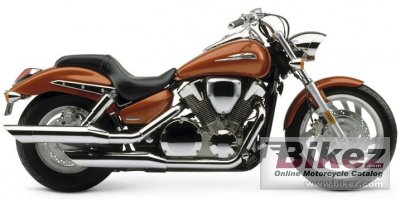

Honda VTX 1300 20042004 Honda VTX 1300 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Performance-cruising, value, style and a look all its own: There´s no doubt that the newest member of our VTX family, the standard 1300cc VTX, is sure to be a huge hit. The engine´s a proven performer. The ride is pure VTX cool and comfort. |
| General information | |
|---|---|
| Motorcycle name | Honda VTX 1300 |
| Year of manufacture | 2004 |
| Type | Custom / cruiser |
| Price as new | US$ 9199. MSRP depends on country, taxes, accessories, etc. |
| Rating | 4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1312.0 ccm (80.06 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 74.0 HP (54.0 kW)) |
| Torque | 123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) |
| Compression | 9.2:1 |
| Bore x stroke | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Valves per cylinder | 3 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Solid-state digital |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiple discs, cable operated |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 140 mm (5.5 inches) |
| Front suspension | 41mm fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Dual shocks with five-position spring-preload adjustability. |
| Rear wheel travel | 91 mm (3.6 inches) |
| Front tire | 110/90-M19 |
| Rear tire | 170/80-M15 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 336 mm (13.2 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 296 mm (11.7 inches) |
| Physical measures and capacities | |
| Dry weight | 290.7 kg (640.9 pounds) |
| Power/weight ratio | 0.2546 HP/kg |
| Seat height | 686 mm (27.0 inches) If adjustable, lowest setting. |
| Wheelbase | 1662 mm (65.5 inches) |
| Fuel capacity | 18.16 litres (4.80 US gallons) |
| Other specifications | |
| Color options | Black, Metallic Silver, Pearl Orange, Candy Red |
