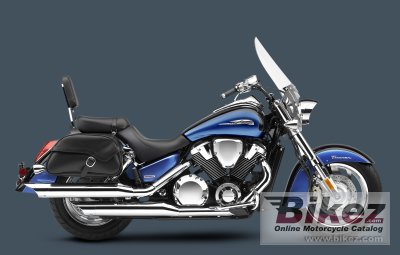

Honda VTX1800T 20102010 Honda VTX1800T specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Custom built for the open road, this 1795cc V-twin-powered beauty combines the best of both worlds, boasting boulevard cruising cred with long-distance capability like no other machine in its class, thanks to all the touring touches you could ever need: roomy saddlebags, big windscreen, cozy passenger backrest, and a plush new, studded seat that´s as comfortable as it is stunning. |
| General information | |
|---|---|
| Model name | Honda VTX1800T |
| Model year | 2010 |
| Category | Custom / cruiser |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1795.0 ccm (109.53 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 101.0 x 112.0 mm (4.0 x 4.4 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection. PGM-FI with automatic choke |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | 45mm inverted fork; 5.1 inches travel |
| Rake (fork angle) | 32.0° |
| Trail | 163 mm (6.4 inches) |
| Front suspension | 45mm inverted fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Dual shocks with five-position spring preload adjustability |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 150/80-R17 |
| Rear tire | 180/70-R16 |
| Front brakes | Double disc. Dual disc with LBS three-piston calipers |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. Single disc with LBS twin-piston caliper |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 362.9 kg (800.0 pounds) |
| Seat height | 696 mm (27.4 inches) If adjustable, lowest setting. |
| Wheelbase | 1715 mm (67.5 inches) |
| Fuel capacity | 20.06 litres (5.30 US gallons) |
| Other specifications | |
| Color options | Black, Black/Candy Black Cherry, Black/Metallic Blue |
| Starter | Electric |
| Comments | Model ID: VTX1800T1 for Package 1 and VTX1800T2 for Package 2. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Honda VTX1800T discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Honda VTX1800T discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Honda bike | |
Touring capabilities for the 2010 Honda VTX1800T:  (83.8 out of 100)Click here for complete rating. |
|
