General information |
|
Motorcycle name
|

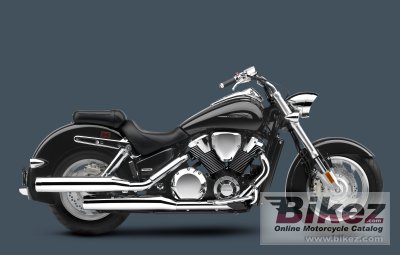

Honda VTX1800N |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 15999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1795.0 ccm (109.53 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
52° V-twin |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
101.0 x 112.0 mm (4.0 x 4.4 inches) |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Injection. PGM-FI with automatic choke |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Emission details
|
Meets current California Air Resources Board (CARB) and EPA standards |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
163 mm (6.4 inches) |
|
Front suspension
|
45mm inverted fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Dual shocks with five-position spring preload adjustability |
|
Rear wheel travel
|
99 mm (3.9 inches) |
|
Front tire
|
150/80-R17 |
|
Rear tire
|
180/70-R16 |
|
Front brakes
|
Double disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
316 mm (12.4 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
364.7 kg (804.0 pounds) |
|
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1715 mm (67.5 inches) |
|
Fuel capacity
|
20.06 litres (5.30 US gallons) |
|
Other specifications |
|
Color options
|
Black, Dark Orange Metallic, Black/Black Custom Art |
|
Starter
|
Electric |
|
Factory warranty
|
One-year unlimited-mileage limited warranty |
|
Comments
|
Model ID: VTX1800N |
