Honda's profilation of this bike |
Refined. Powerful. Ready to go. Meet the VTX1800, the most Xtreme V-twin motorcycle we´ve ever made. |
General information |
Model
|

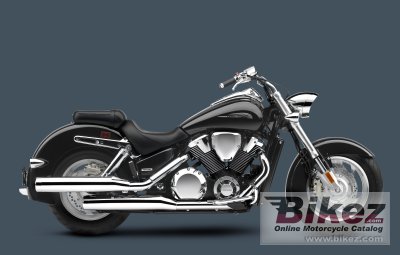

Honda VTX1800N |
Year of manufacture
|
2010 |
Type
|
Custom / cruiser |
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
1795.0 ccm (109.53 cubic inches) |
Type of engine
|
V2, four-stroke |
Output
|
90.0 HP (65.7 kW)) @ 5200 RPM |
Torque
|
89.0 Nm (9.1 kgf-m or 65.6 ft.lbs) @ 2850 RPM |
Top speed
|
201.2 km/h (125.0 mph) |
Bore x stroke
|
101.0 x 112.0 mm (4.0 x 4.4 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Injection. PGM-FI with automatic choke |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
Double-cradle steel tube |
Rake (fork angle)
|
32.0° |
Trail
|
163 mm (6.4 inches) |
Front suspension
|
45mm inverted fork; 5.1 inches travel |
Rear suspension
|
Dual shocks with five-position spring preload adjustability; 3.9 inches travel |
Front tire
|
150/80-R17 |
Rear tire
|
180/50-R16 |
Front brakes
|
Double disc. With LBS three-piston calipers |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Single disc. With LBS twin-piston caliper |
Diameter
|
316 mm (12.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
364.7 kg (804.0 pounds) |
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
Wheelbase
|
1715 mm (67.5 inches) |
Fuel capacity
|
20.06 litres (5.30 US gallons) |
Other specifications |
Color options
|
Black, Dark Orange Metallic, Black/Black Custom Art, Dark Orange Metallic |
Starter
|
Electric |
Comments
|
Model id: VTX1800N for Package 1 and VTX18N28 for Package 2 with chrome radiator sidecovers |
