Honda's profilation of this bike |

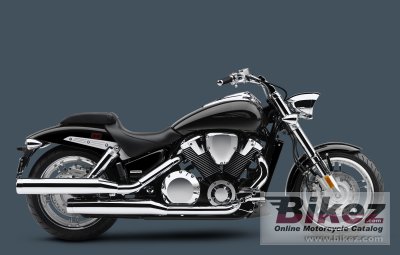

If the VTX1800T is the fully decked-out prince of the family, then the VTX1800F is its stripped-down, bare-knuckles brother. Long and lean, this bad boy is all about one thing—performance—with sporty features ranging from a low, two-piece gunfighter-style seat (with removable pillion), semi-swept, dragbike-like bars to chopped fenders, 10-spoke racing-style wheels, and chromed two-into-two pipes sporting straight-cut, five-bolt tips. |
General information |
Model name
|
Honda VTX1800F |
Model year
|
2011 |
Category
|
Custom / cruiser |
Price as new | US$ 13499. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
1795.0 ccm (109.53 cubic inches) |
Engine type
|
V2, four-stroke |
Engine details
|
52° V-twin |
Compression
|
9.0:1 |
Bore x stroke
|
101.0 x 112.0 mm (4.0 x 4.4 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Injection. PGM-FI with automatic choke |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital, two spark plugs per cylinder |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Emission details
|
Meets current California Air Resources Board (CARB) and EPA standards |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
31.5° |
Trail
|
144 mm (5.7 inches) |
Front suspension
|
45mm inverted fork |
Front wheel travel
|
109 mm (4.3 inches) |
Rear suspension
|
Dual shocks with five-position spring preload adjustability |
Rear wheel travel
|
99 mm (3.9 inches) |
Front tire
|
130/70-R18 |
Rear tire
|
180/55-R18 |
Front brakes
|
Double disc |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
316 mm (12.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
351.1 kg (774.0 pounds) |
Seat height
|
701 mm (27.6 inches) If adjustable, lowest setting. |
Wheelbase
|
1669 mm (65.7 inches) |
Fuel capacity
|
18.17 litres (4.80 US gallons) |
Other specifications |
Color options
|
Black, Candy Red Tribal |
Starter
|
Electric |
Comments
|
Model ID: VTX1800F1 |
