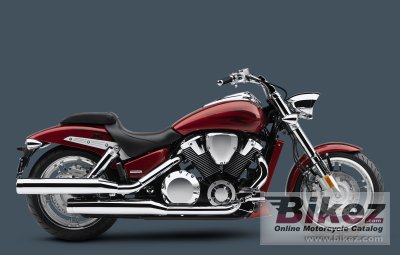

Honda VTX1800F 20102010 Honda VTX1800F specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| If the VTX1800T is the fully decked-out prince of the family, then the VTX1800F is its stripped-down, bare-knuckles brother. Long and lean, this bad boy is all about one thing—performance—with sporty features ranging from a low, two-piece gunfighter-style seat (with removable pillion), semi-swept, dragbike-like bars to chopped fenders, 10-spoke racing-style wheels, and chromed two-into-two pipes sporting straight-cut, five-bolt tips. |
| General information | |
|---|---|
| Motorcycle name | Honda VTX1800F |
| Year model | 2010 |
| Type | Touring |
| Rating | 4.0 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1795.0 ccm (109.53 cubic inches) |
| Type of engine | V2, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 101.0 x 112.0 mm (4.0 x 4.4 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection. PGM-FI with automatic choke |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 31.0° |
| Trail | 144 mm (5.7 inches) |
| Front suspension | 45mm inverted fork |
| Front wheel travel | 109 mm (4.3 inches) |
| Rear suspension | Dual shocks with five-position spring preload adjustability |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 180/55-R18 |
| Front brakes | Double disc. Dual disc with LBS three-piston calipers |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. Single disc with LBS twin-piston caliper |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 351.1 kg (774.0 pounds) |
| Seat height | 701 mm (27.6 inches) If adjustable, lowest setting. |
| Wheelbase | 1669 mm (65.7 inches) |
| Fuel capacity | 18.16 litres (4.80 US gallons) |
| Other specifications | |
| Color options | Black, Candy Red Tribal |
| Comments | Model ID: VTX1800F1 for Package 1 and VTX1800F2 for Package 2. |
